Friday, October 5, 2012

"Will Tesla's New Monarch of Mechanics Revolutionize the World?" - News from 1911

This article appeared in The Washington Post in October of 1911.  Frank Parker Stockbridge interviewed Nikola Tesla, after much persuasion, in Tesla's laboratory where he was privileged to see demonstrations of Tesla's latest inventions personally.

During the interview, Nikola Tesla thoroughly explains his latest inventions and shares with Mr. Stockbridge his lifelong dream of designing a superior wingless flying machine--more maneuverable and safer than the airplane.

A rare and fascinating glimpse into the life of Nikola Tesla...

The Washington Post, Washington D.C., Sunday, October 15, 1911.

Will Tesla's New Monarch of Mechanics Revolutionize the World?

Noted Balkan Scientist Claims to Have Perfected an Engine That Will Develop Ten Horsepower to Every Pound of Weight, and Promises Soon to Give to the World a Flying Machine Without Wings, Propeller, or Gas Bag. Characterizes Aeroplanes of Today as Mere Dangerous Toys Compared With the Safe and Stable Appliance Which Will Be Used in a Short Time to Dash Through the Air at a Speed Now Unimagined.

BY FRANK PARKER STOCKBRIDGE.
TEN horsepower from a tiny engine that a man could dangle from his little finger by a string!

Five hundred horsepower in a package that a man could lift easily in one hand!

A thousand horsepower motor occupying hardly more space than the cardboard box in which your hatter sent your new derby home!

Marvelous? Wait until you hear the rest of it!

Suppose some one should discover a new mechanical principle--something as fundamental as James Watt's discovery of the expansive power of steam--by the use of which it became possible to build a motor that would give ten horsepower for every pound of the engine's weight, a motor so simple that the veriest novice in mechanics could construct it and so elemental that it could not possibly get out of repair. Then suppose that this motor could be used as either an engine or a pump, that it cost almost nothing to build as compared with any other known form of engine, that it utilized a larger percentage of the available power than any existing machine, and, finally, that it would operate with gas, steam, compressed air, or water, or any one of them, as its driving power.

It does not take a mechanical expert to imagine the limitless possibilities of such an engine. It takes very little effort to conjure up a picture of a new world of industry and transportation made possible by the invention of such a device. "Revolutionary" seems a mild term to apply to it. That, however, is the word the inventor uses in describing it--Nikola Tesla, the scientist, whose electrical discoveries underlie all modern electrical power development, whose experiments and deductions made the wireless telegraph possible, and who now, in the mechanical field, has achieved a triumph even more far reaching than anything he accomplished in electricity.

Romance in Discovery.

There is something of the romantic in this discovery of the famous explorer of the hidden realms of knowledge. The pursuit of an ideal is always romantic, and it was in the pursuit of an ideal which he has been seeking twenty years that Dr. Tesla made his great discovery. That ideal is the power to fly--to fly with certainty and absolute safety--not merely to go up in an aeroplane and take chances on weather conditions, "holes in the air," tornadoes, lightning, and the thousand other perils the aviator of today faces, out to fly with the speed and certainty of a cannon ball, with power to overcome any of nature's aerial forces, to start when one pleases, go whither one pleases, and alight where one pleases. That has been the aim of Dr. Tesla's life for nearly a quarter of a century. He believes that with the discovery of the principle of his new motor he has solved this problem, and that incidentally he has laid the foundations for the most startling new achievements in other mechanical lines.

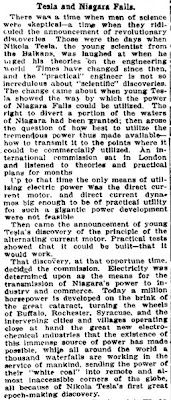

Tesla and Niagara Falls.

There was a time when men of science were skeptical--a time when they ridiculed the announcement of revolutionary discoveries. Those were the days when Nikola Tesla, the young scientist from the Balkans, was laughed at when he [unreadable] his theories on the engineering world. Times have changed since then, and the "practical" engineer is not so incredulous about "scientific" discoveries. The change came about when young Tesla showed the way by which the power of Niagara Falls could be utilized. The right to divert a portion of the waters of Niagara had been granted; then arose the question of how best to utilize the tremendous power thus made available--how to transmit it to the points where it could be commercially utilized. An international commission sat in London and listened to theories and practical plans for months.

Up to that time the only means of utilizing electric power was the direct current motor, and direct current dynamos big enough to be of practical utility for such a gigantic power development were not feasible.

Then came the announcement of young Tesla's discovery of the principle of the alternating current motor. Practical tests showed that it could be built--that it would work.

That discovery, at that opportune time, decided the commission. Electricity was determined upon as the means for the transmission of Niagara's power to industry and commerce. Today a million horsepower is developed on the brink of the great cataract, turning the wheels of Buffalo, Rochester, Syracuse, and the intervening cities and villages operating close at hand, the great new electro-chemical industries that the existence of this immense source of power has made possible, while all around the world a thousand waterfalls are working in the service of mankind, sending the power of their "white coal" into remote and almost inaccessible corners of the globe, all because of Nikola Tesla's first great epoch-making discovery.

Great Excitement in Engineering World.

Today the engineering world listens respectfully when Dr. Tesla speaks. The first announcement of the discovery of his new mechanical principle was made in a technical periodical in Mid-September, 1911. Immediately it became the principal topic of discussion wherever engineers met.

"It is the greatest invention in a century." wrote one of the foremost American engineers, a man whose name stands close to the top of the list of those who have achieved scientific fame and greatness.

"No invention of such importance in the automobile trade has yet been made," declared the editor of one of the leading engineering publications. Experts in other engineering lines pointed out other applications of the new principle, and letters asking for further information poured in on Dr. Tesla from the four quarters of the globe.

"Oh, I've had too much publicity." he said when I telephoned to him to ask for an interview in order to explain his new discovery to the nontechnical public. It took a good deal of persuasion before he reluctantly fixed an hour when he would see me, and a good bit more after that before he talked at all freely. When he did speak, however, he opened up vistas of possible applications of the new engine that staggered the imagination of the interviewer.

Telling His Life Dream.


Looking out over the city from the windows of his office, on the twentieth floor of the Metropolitan Tower, New York, his face lit up as he told of his life dream and its approaching realization, and the listener's fancy could almost see the air full of strange flying craft, while huge steamships propelled at unheard of speeds plowed the waters of the North River, automobiles climbed the very face of the Palisades, locomotives of incredible power whisked wheeled
palaces many miles a minute, and all the discomforts of summer heat vanished as marvelous refrigerating plants reduced the temperature of the whole city to a comfortable maximum--for these were only a few of the suggestions of the limitless possibilities of the latest Tesla discovery.

"Just what is your new invention?" I asked.

"I have accomplished what mechanical engineers have been dreaming about ever since the invention of steam power," replied Dr. Tesla. "That is the perfect rotary engine. It happens that I have
also produced an engine which will give at least 25 times as much power to a pound of weight as the lightest weight engine of any kind that has yet been produced.

"In doing this I have made use of two properties which have always been known to be possessed by all fluids, but which have not heretofore been utilized. These properties are adhesion and viscosity.

"Put a drop of water on a metal plate.
The drop will roll off, but a certain amount of the water will remain on the plate until it evaporates or is removed by some absorptive means. The metal does not absorb any of the water, but the water adheres to it.

"The drop of water may change its shape, but until its particles are separated by some external power it remains intact. This tendency of all fluids to resist molecular separation is viscosity. It is especially noticeable in the heavier oils.

"It is these properties of adhesion and viscosity that cause the 'skin friction'
that impedes a ship in its progress through the water or an aeroplane in going through the air. All fluids have these qualities--and you must keep in mind that the air is a fluid, all gases are fluids, steam is fluid. Every known means of transmitting or developing mechanical power is through a fluid medium.

"Now, suppose we make this metal plate that I have spoken of circular in shape and mount it at its center on a
shaft so that it can be revolved. Apply power to rotate the craft and what happens? Why, whatever fluid the disk happens to be revolving in is agitated and dragged along in the direction of rotation, because the fluid tends to adhere to the disk and the viscosity causes the motion given to the adhering particles of the fluid to be transmitted to the whole mass. Here, I can show you better than I can tell you."

A Practical Demonstration.

Dr. Tesla led the way into an adjoining room. On a desk was small electric motor, and mounted on the shaft were half a dozen flat disks, separated by perhaps a sixteenth of an inch from one another, each disk being less than that in thickness. He turned a switch and the motor began to buzz. A wave of cool air was immediately felt.

"There we have a disk, or rather a series of disks, revolving in a fluid--the air," said the inventor. "You need no proof to tell you that the air is being agitated and propelled violently. If you will hold your hand over the center of these disks--you see the centers have been cut away--you will feel the suction as air is drawn in to be expelled from the peripheries of the disks.

"Now, suppose these revolving disks were inclosed in an airtight case, so constructed that the air could enter only at one point and be expelled only at another--what would we have?

"You'd have an air pump," I suggested.

"Exactly--an air pump or a blower," said Dr. Tesla. There is one now in
operation delivering 10,000 cubic feet of air a minute. Now come over here."

He stepped across the hall and into another room, where three or four draftsmen were at work and various mechanical and electrical contrivances were scattered about. At one side of the room was what appeared to be a zinc or aluminum tank, divided into two sections, one above the other, while a pipe that ran along the wall above the upper division...

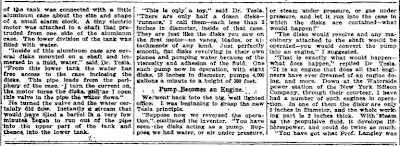

...of the tank was connected with a little aluminum case about the size and shape of a small alarm clock. A tiny electric motor was attached to a shaft that protruded from one side of the aluminum case. The lower division of the tank was filled with water.

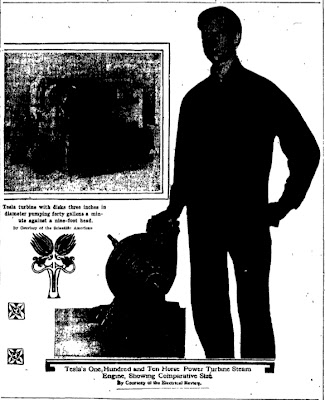

"This is only a toy," said Dr. Tesla. "There are only half a dozen disks--'runners,' I call them--each less than 3 inches in diameter, inside of that case. They are just like the disks you saw on the first motor--no vanes, blades, or attachments of any kind. Just perfectly smooth, flat disks revolving in their own planes and pumping water because of the viscosity and adhesion of the fluid. One such pump now in operation, with eight disks 18 inches in diameter, pumps 4,000 gallons a minute to a height of 360 feet.

Pump Becomes an Engine


We went back into the big, well lighted office. I was beginning to grasp the new Tesla principle.

"Suppose now we reversed the operation," continued the inventor. "You have seen the disks acting as a pump. Suppose we had water, or air under pressure, or steam under pressure, or gas under pressure, and let it run into the case in which the disks are contained--what would happen?"

"The disks would revolve and any machinery attached to the shaft would be operated--you would convert the pump into an engine." I suggested.

"That is exactly what would happen--what does happen," replied Dr. Tesla. "It is an engine that does all that engineers have ever dreamed of an engine doing, and more. Down at the Waterside power station of the New York Edison Company, through their courtesy, I have had a number of such engines in operation. In one of them the disks are only 9 inches in diameter, and the whole working part is 2 inches thick. With steam as the propulsive fluid, it develops 110-horsepower, and could do twice as much.

"You have got what Prof. Langley was
trying to evolve for his flying machine--an engine that will give a horsepower for a pound of weight?" I suggested.

"I have got more than that," replied Dr. Tesla. "I have an engine that will give 10 horsepower to the pound of weight. That is 25 times as powerful as the lightest-weight engine in use today. The lightest gas engine used on aeroplanes weighs 2 1/2 pounds to the horsepower. With 2 1/2 pounds of weight, I can develop 25 horsepower."

"That means the solution of the problem of flying," I suggested.

"Yes, and many more." was the reply. "The applications of this principle, both for imparting power to fluids, as in pumps, and for deriving power from fluids, as in turbines, are boundless. It costs almost nothing to make, there is nothing about it to get out of order, it is reversible--simply have two ports for the gas or steam, to enter by, one on each side, and let it into one side or other. There are no blades or vanes to get out of order--the steam turbine is a delicate thing."

I remembered the bushels of broken blades that were gathered out of the turbine casings of the first turbine-equipped steamship to cross the ocean, and realized the importance of this phase of the new engine.
No Delicate Adjustment Necessary.

"Then, too," Dr. Tesla went on, "there are no delicate adjustments to be made. The distance between the disks is not a matter of microscopic accuracy, and there is no necessity for minute clearances between the disks and the case. All one needs is some disks mounted on a shaft, spaced a little distance apart, and cased so that a fluid can enter at one point and go out at another. If the fluid enters at the center and goes out at the periphery it is a pump. If it enters at the periphery and goes out at the center it is a motor.

"Coupling these engines in series, one can do away with gearing in machinery. Factories can be equipped without shafting. The motor is especially adapted to automobiles, for it will run on gas explosions as well as on steam. The gas or steam can be let into a dozen ports all around the rim of the case if desired. It is possible to run it as a gas engine with a continuous flow of gas, gasoline and air being mixed and the continuous combustion causing expansion and pressure to operate the motor. The expansive power of steam, as well as its propulsive power, can be utilized as in a turbine or a reciprocating engine. By permitting the propelling fluid to move along the lines of least resistance a considerably larger proportion of the available power is utilized.

"As an air compressor it is highly efficient. There is a large engine of this type now in practical operation as an air compressor, and giving remarkable service. Refrigeration on a scale hitherto never attempted will be practical, through the use of this engine in compressing air, and the manufacture of liquid air commercially is now entirely feasible.

"With a 1,000-horsepower engine, weighing only 100 pounds, imagine the possibilities in automobiles, locomotives, and steamships. In the space now occupied by the engines of the Lusitania 25 times her 80,000 horsepower could be developed, were it possible to provide boiler capacity sufficient to furnish the necessary steam."

"And it makes the aeroplane practical," I suggested.

Flying Machine to Supplant Aeroplane.

"Not the aeroplane, the flying machine," responded Dr Tesla. "Now you have struck the point in which I am most deeply interested--the object toward which I have been devoting my energies for more than twenty years--the dream of my life. It was in seeking the means of making the perfect flying machine that I developed this engine.

"Twenty years ago I believed that I would be the first man to fly; that I was on the track of accomplishing what no one else was anywhere near reaching. I was working entirely in electricity then, and did not realize that the gasoline engine was approaching a perfection that was going to make the aeroplane feasible. There is nothing new about the aeroplane but its engine, you know.

"What I was working on twenty years ago was the wireless transmission of electric power. My idea was a flying machine propelled by an electric motor, with power supplied from stations on the earth. I have not accomplished this as yet, but am confident that I will in time.


The Aero a Mere Toy.

"When I found that I had been anticipated, as to the flying machine, by men working in a different field, I began to study the problem from other angles, to regard it as a mechanical rather than an electrical problem. I felt certain there must be some means of obtaining power that was better than any now in use, and by vigorous use of my gray matter for a number of years I grasped the possibilities of the principle of the viscosity and adhesion of fluids, and conceived the mechanism of my engine. Now that I have it my next step will be the perfect flying machine."

"An aeroplane driven by your engine?" I asked.

"Not at all," said Dr. Tesla. "The aeroplane is fatally defective. It is merely a toy--a sporting plaything. It can never become commercially practical. It has fatal defects. One is the fact that when it encounters a downward current of air it is helpless. The 'hole in the air' of which aviators speak is simply a downward current, and unless the aeroplane is high enough above the earth to move laterally out of the downward current before striking the ground it can do nothing but fall. There is no way of detecting these downward currents, no way of avoiding them, and therefore the aeroplane must always be subject to chance and its operator to the risk of fatal accident. Sportsmen will always take these chances, but as a business proposition the risk is too great.

"The flying machine of the future--my flying machine--will be heavier than air, but it will not be an aeroplane. It will have no wings. It will be substantial, solid, stable. You cannot have a stable aeroplane. The gyroscope can never be successfully applied to the aeroplane, for it would give a stability that would result in the machine being torn to pieces by the wind, just as the unprotected aeroplane on the ground is torn to pieces by a high wind.

Neither Wings Nor Propeller.

"My flying machine will have neither wings nor propellers. You might see it on the ground and you would never guess that it was a flying machine. Yet it will be able to move at will through the air in any direction with perfect safety, higher speeds than have yet been reached, regardless of weather and oblivious of 'holes in the air' or downward currents. It will ascend in such currents if desired. It can remain absolutely stationary in the air even in a wind for a great length of time. Its lifting power will not depend upon any such delicate devices as the bird has to employ, but upon positive mechanical action."

"You will get stability through gyroscopes?" I asked.

"Through gyroscopic action of my engine, assisted by some devices I am not yet prepared to talk about," he replied.

"Powerful air currents that may be deflected at will, if produced by engines and compressors sufficiently light and powerful, might lift a heavy body off the ground and propel it through the air," I ventured, wondering if I had grasped the inventor's secret.

Dr. Tesla smiled an inscrutable smile.

"All I have to say on that point is that my airship will have neither gas bag, wings, nor propellers," he said. "It is the child of my dreams, the product of years of intense and painful toil and research. I am not going to talk about it any further. But whatever my airship may be, here at least is an engine that will do things that no other engine ever has done, and that is something tangible."
(Copyright, 1911, by the New York Herald Co. All rights reserved.)
